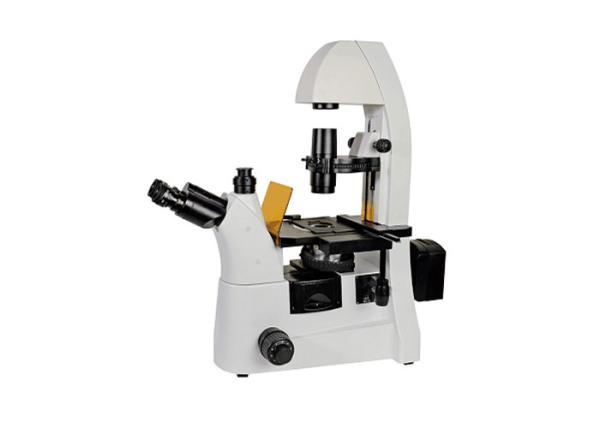

Infinity Optical System Fluorescent Light Microscopy With LED Excitation

Name: Infinity Optical System Fluorescent Light Microscopy With LED Excitation
Brand: VANCO
Price: 1 USD

Brand Name : VANCO

Model Number : XYL-412Y

Certification : CE

Place of Origin : CHINA

MOQ : ONE PC

Price : Negotiable

Supply Ability : 50pcs/month

Delivery Time : As per order quantity

Packaging Details : In styrofoam case and carton

Drawtube : Binocular/Trinocular

Theory : Fluorescence Microscope

Viewing head : inclined at 45 °

Condenser : Abbe N.A.1.25

Color : White

Stage : Mechanical stage

Contact Now

XYL-412Y Five Wave Bands Fluorescent Light Microscopy Infinite Apochromatic Fluorescent Objectives

XYL-412Y inverted five wave bands fluorescent microscope is composed of inverted microscope and Epi-fluorscent microscope.The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish.Epi-fluorescent device applies to the fluorescent microscopy.It is equipped with infinite long working distance big numeral aperture Plan Apochromatic objective,phase contrast kit and phase contrast objectives.The transparent alive objects can be observed without dyeing.Epi-fluorescent microscope adopts LED excitation which controlled by touch screen to make fluorescent image clear.Long working distance condenser can contain higher culture dish and specimen.This equipment is specially suitable for micro research of living cells and organization,fluidness and sediment.It is an ideal equipment for researching treatment,epidemic prevention and farming,stock raising & forestry department,etc.

Specification
Optical system	infinite optical system
viewing head	Compensation Free Trinocular Head Inclined at 45° (50mm-75mm)
Eyepiece	PlanWF10×/22mm
Objective	infinite L.W.D.big numerial aperture plan appochromatic objective 4×/0.15(L.W.D.21.6mm) ,cover-glass thickness 1.5mm 10×/0.3(L.W.D.3mm),cover-glass thickness 1.5mm 20×/0.5(L.W.D.4.27mm),cover-glass thickness 1.5mm 40×(S) /0.6(L.W.D.2.23mm),cover-glass thickness 1.5mm
Nosepiece	Sextuple Nosepiece
Stage	Double layer mechanical stage
	Stage Size:242mm×172mm
	Moving Range :75mm×40mm
	Low located XY adjusting hand wheel
Focusing	Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.001mm
Light Source	Transmission illumination Halogen Bulb 12V/30W,AC85V-230V, brightness adjustable Epi-Fluorescent illumination Five wave bands LED source controlled by touch screen,LED 8W, AC85V-230V,brightness adjustable
Fluorescence attachment	G,B,BV,V,UV
Condense	Abbe condenser,working distance28mm
Phase contrast device	Contrast table(28mm),Centering telescope
Filter	Blue,green,yellow,grosted glass
Optional Acessory	Eyepiece:WF10×/20mm,crosshair with reticule 0.1mmWF15×/17mm,WF20×/12.5mm
	Abbe condenser,Working distance 70mm,Phase contrast turret(70mm)
	Photography attachment and CCD C-mount:0.5X,0.57X,0.75X
	infiniter L.W.Dbig numerial aperture plan:100×(dry)/N.A.0.9
	4X/0.15(L.W.D.21.6mm,phase contrast),cover glass thickness 1.5mm 40X/0.60(L.W.D.2.23mm,phase contrast),cover glass thickness 1.5mm
	130Mega,200Mega,300Mega,500Mega,1000Mega pixels digital camera eyepiece
	Image analysis software
